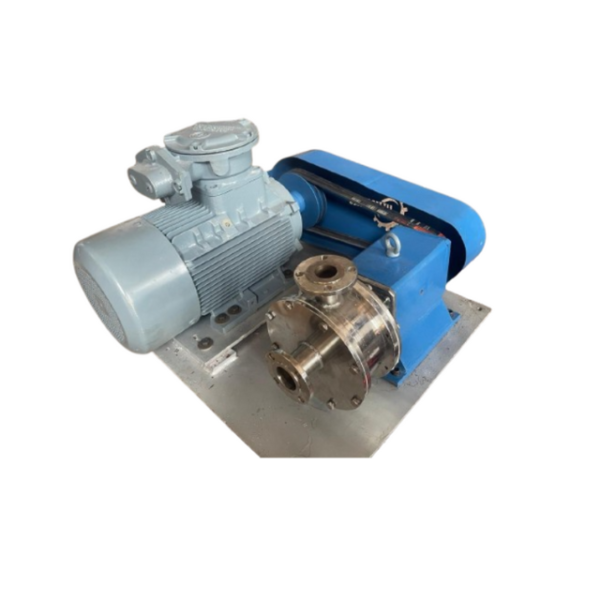

COLLOIDAL MILL

SPECIFICATIONS :

Capacity: Available in various models based on production scale – from laboratory to industrial-scale capacity.

Power Supply: Multiple options depending on voltage and power requirements.

Material Construction: Primarily made from stainless steel (SS304 or SS316L) for enhanced durability and ease of cleaning.

Operating Speed: Upto 6000 RPM

Customizable Designs: We offer tailored solutions based on specific requirements such as custom rotor/stator designs or specialized materials.

HOW IT WORKS :

The Colloidal Mill operates based on the principle of shear force, using a high-speed rotating rotor and a stationary stator to achieve fine particle size reduction and uniform dispersion. Here’s a breakdown of how it works:

Key components :

1. Rotor: A high-speed rotating component that spins at high RPM (rotations per minute), generating shear forces.
2. Stator: A stationary component that surrounds the rotor. It typically has slots or teeth that help break down particles as the material passes between the rotor and stator.
3. 4 Stages rotor stator assembly

APPLICATIONS  :

Our colloidal mill is  perfect for a wide range of industries:

Pharmaceutical Industry: For the production of suspensions, emulsions, and pastes, including medicines, ointments, and creams. The Colloidal Mill ensures precise control over particle size, which is critical for bioavailability and effectiveness.

Food Processing: Ideal for producing sauces, syrups, jams, and beverages, where uniform consistency and fine particle dispersion are required.

Cosmetics: Used in the production of lotions, creams, and other cosmetic emulsions where fine texture and smooth consistency are essential.

Chemical Industry: Perfect for manufacturing bitumen emulsion, paints, inks, adhesives, and sealants, where high shear forces are needed for thorough mixing and fine grinding.
